Avalible for Purchase: Rotoweld 3
Rotoweld 3: Dual Bay System
Purchase date: April 2016
Installation Date: September 2016
Welder serial #
STT – U1150604906
CV-400 – U1100303262
Product Description
Software et PDL updated on Oct 11th, 2023
Soft 10.9.5.4
PDL 7.0.15
Type of Machine: Rotoweld 3.0
Type of Design: Twin Workstation –STT/Spray
Stt
CV 400
*For pricing, please contact the ISI team.
Standard Items Included in a Rotoweld
- Diameter – 3” to 42” dia. Capacity
- 65” center line of chuck to top of rail
- 42” chuck capacity
- 22’ clearance between chucks and 42’ from face of chuck to last weld
- Two (2) PLC-controlled, servo-drive rotators and self-centering chucks
- Integrated welding power sources (Lincoln’s STT and CV400)

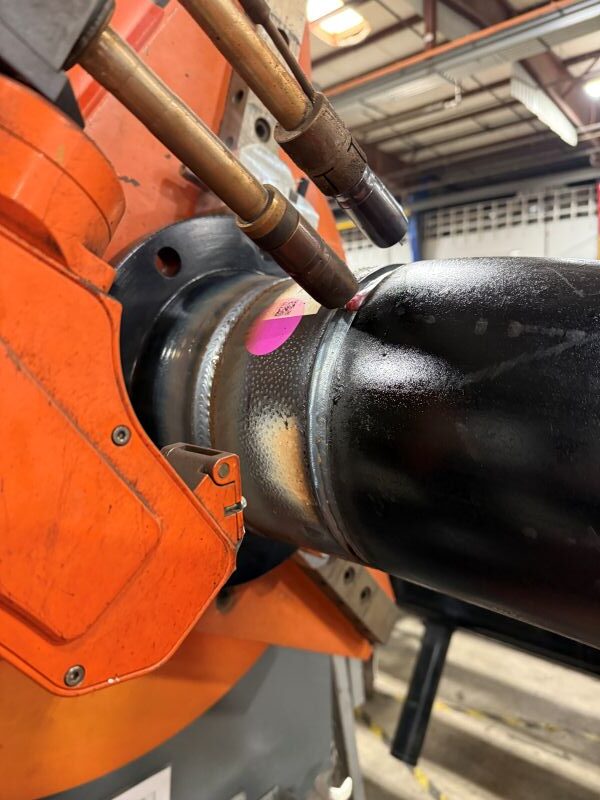

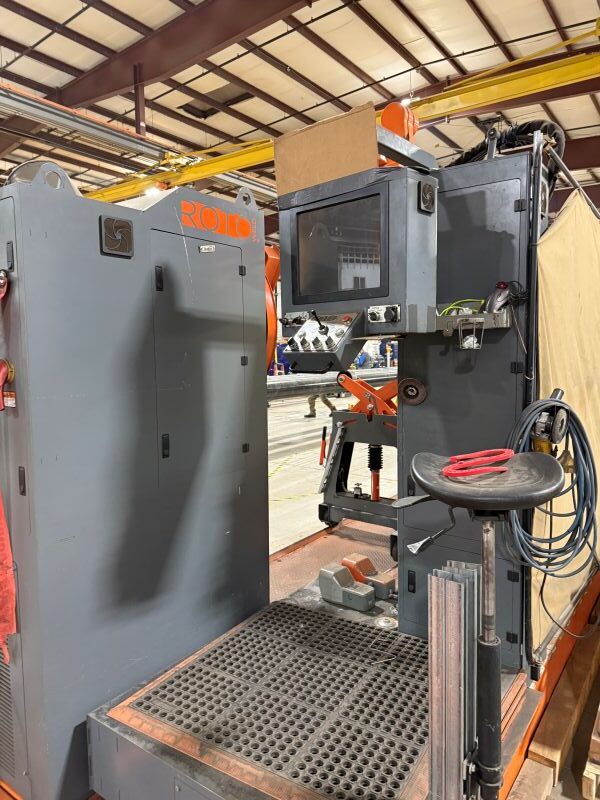

- Vision-assisted, programmable, STT/spray transfer welding head with arm positioner type and operator console mounted on traveling carriage

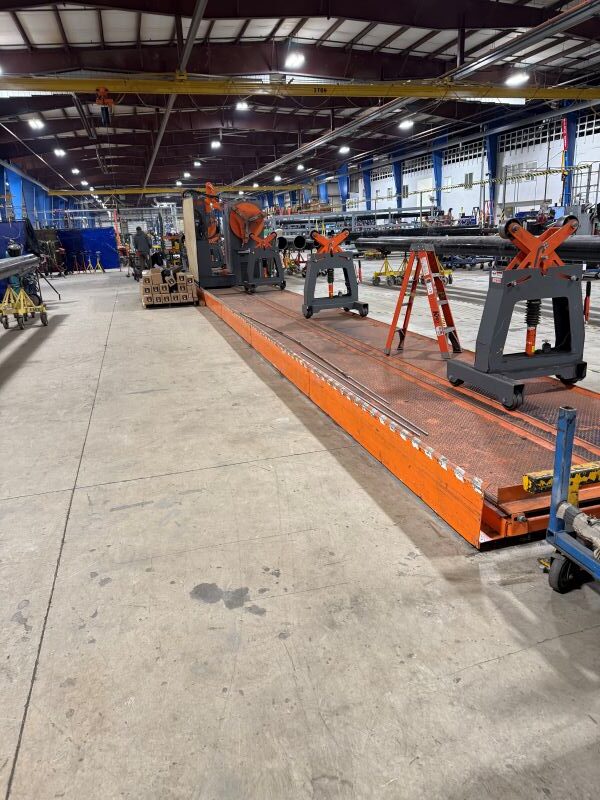

- 78ft track system, normal length track
- 4 (four) Idler rolls carriage
- Motorized carriage option
